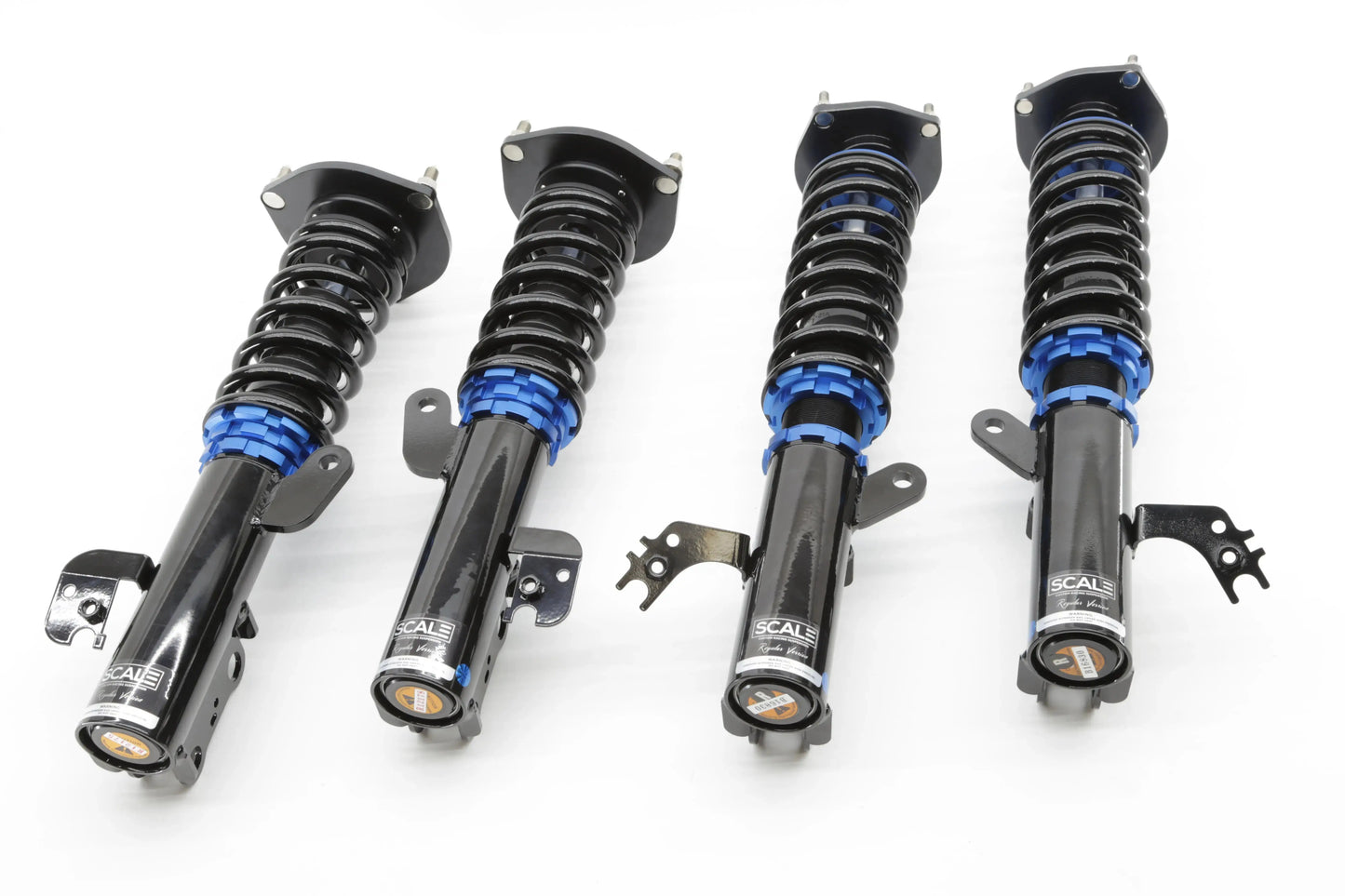

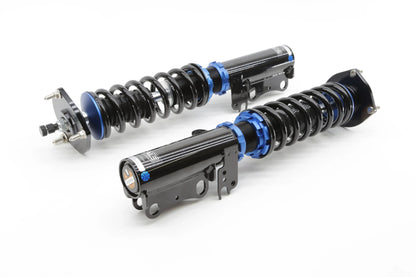

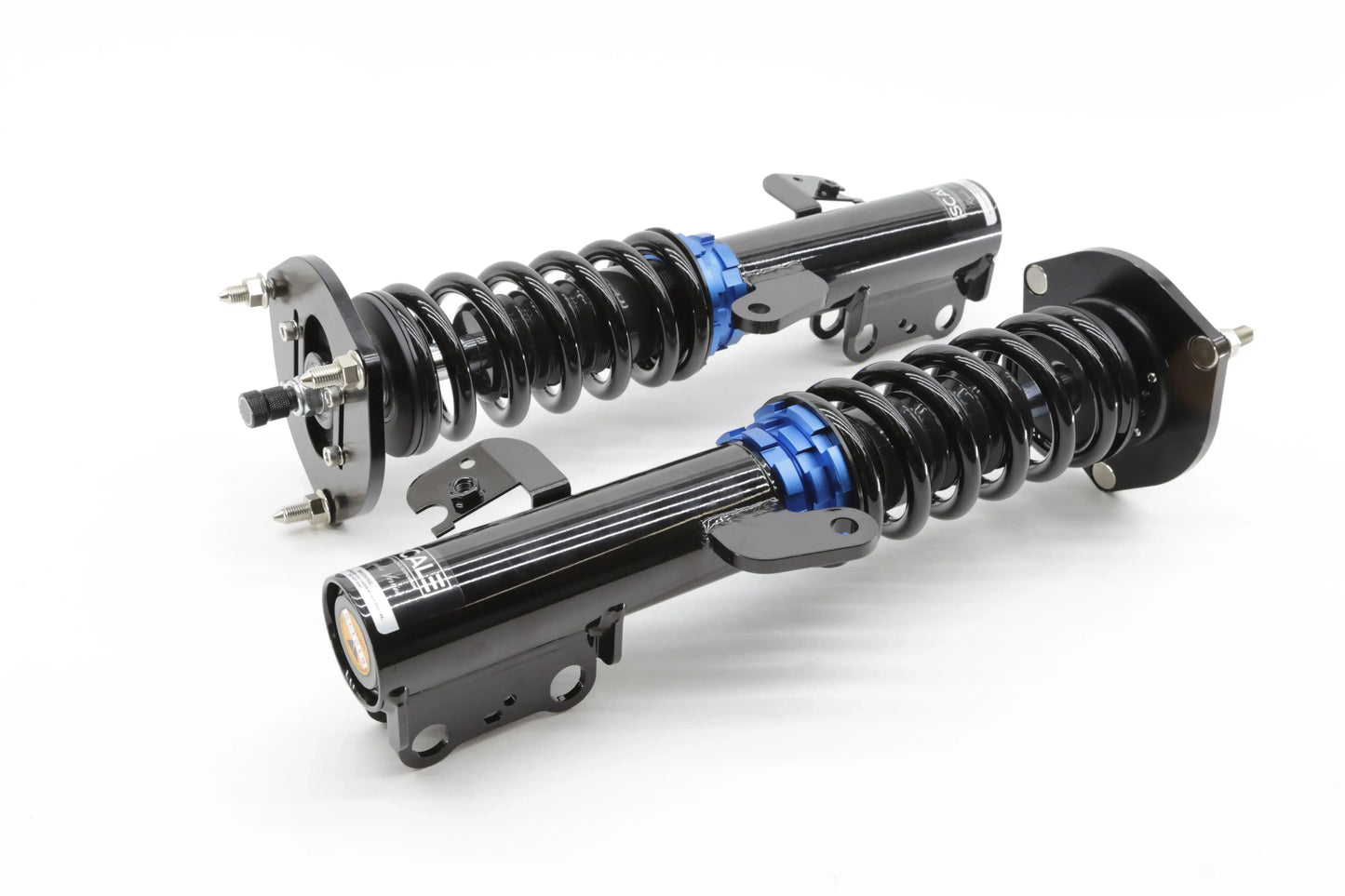

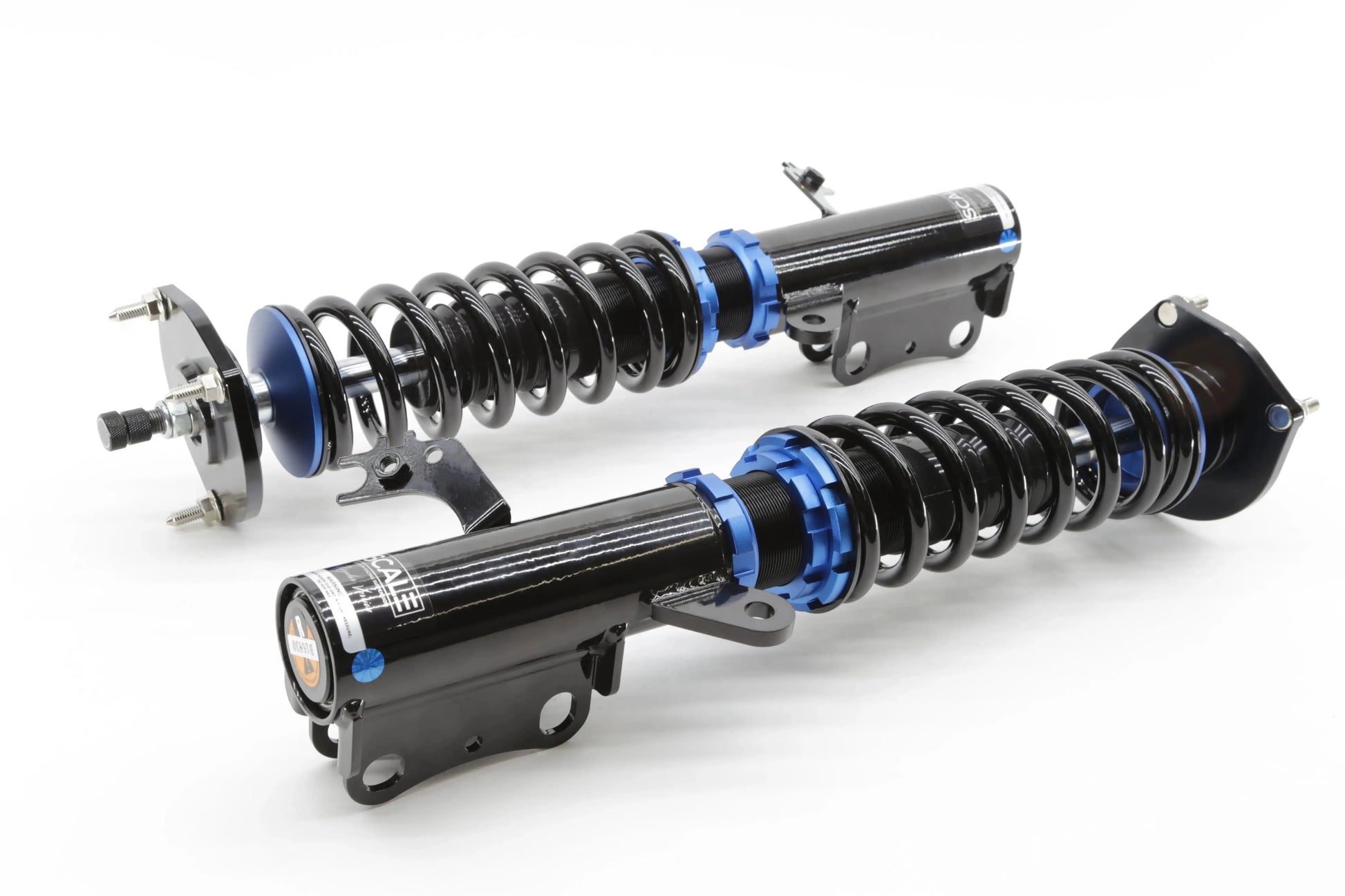

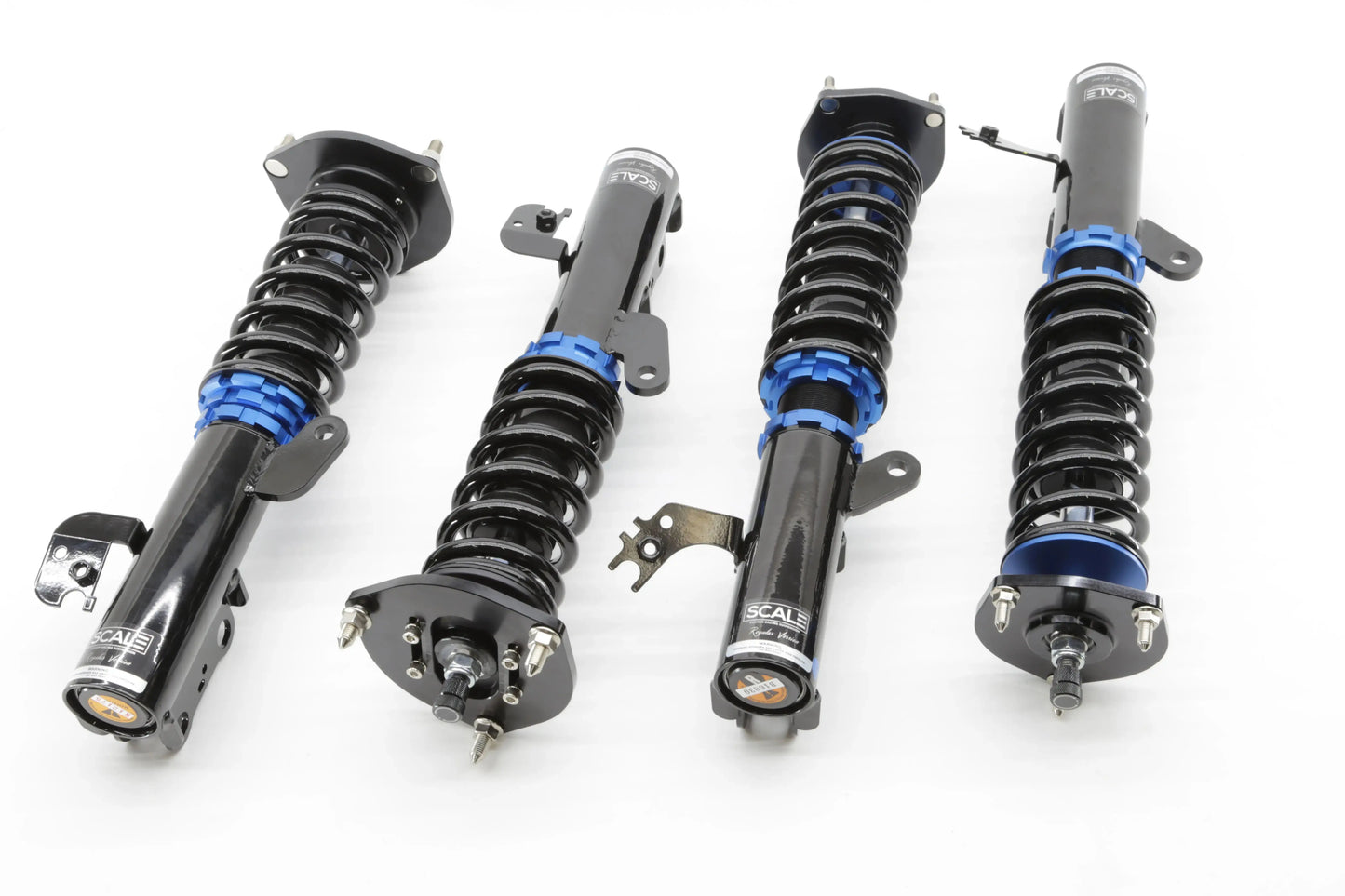

Toyota Camry *Se/Xse* 12-17 Innovative Series Coilover
Toyota Camry *Se/Xse* 12-17 Innovative Series Coilover
TY53-IS
🔴 Built To Order (1-3 Weeks)
Couldn't load pickup availability
Need help? Call us (480) 923-8389
This coilover suspension upgrade is designed to achieve a perfect balance of street comfort and increased performance. This suspension system allows you to easily adjust your ride height while improving handling performance of your car.
Our patented scaled system design allows easier and more precise adjustment and ensures equal height on each corner. Each shock is equipped with 24 levels of dampening adjustment to fine-tune the valving efficiency.
The Part : TY53-IS coilover shocks are handcrafted and assembled to your specs at SCALE facilities.
This model front Macpherson configuration comes with adjustable camber plate front top mounts to set your desired camber specs and avoid excessive tire wear. We recommend using the gravitational bearing option to reduce the effort of the camber plate.
This application uses a rear Macpherson configuration, so the shock directly impacts the wheel alignment and allows the use of a camber plate top mount. All our suspensions have camber adjustment on the lower mounting portion, but if you need additional camber adjustment, add the rear camber plate upgrade.
Our mono-tube shock absorber are using high-quality CNC piston valves, synthetic oil and high-pressure nitrogen gas contained within one tube.
We can always customize the spring rate and shock length to fit your exact needs on this application.
Technical Specs
| Make | Toyota |
|---|---|
| Model | Camry |
| Year | 2012, 2013, 2014, 2015, 2016, and 2017 |
| Front Suspension | MacPherson |
| Rear Suspension | MacPherson |
| Number of Valves | 24 |
| Aluminum Type | 6061-T6 CNC-Forged |
| Body Diameter | M52X1.5 |
| Internal Design | Monotube |
| Shock Oil Type | Synthetic Shock Oil |
| Pressurized Charge | High Pressure Nitrogen Gas |
| Assembly | No Welding Required, Rebuildable |
