Mercedes-Benz E-Class W211 Airmatic AWD 02-09 Innovative Series Coilover

Mercedes-Benz E-Class W211 Airmatic AWD 02-09 Innovative Series Coilover

MB26-IS

🔴 Built To Order (2-4 Weeks)

$1,295.00
$1,295.00

Need help? Call us (480) 923-8389

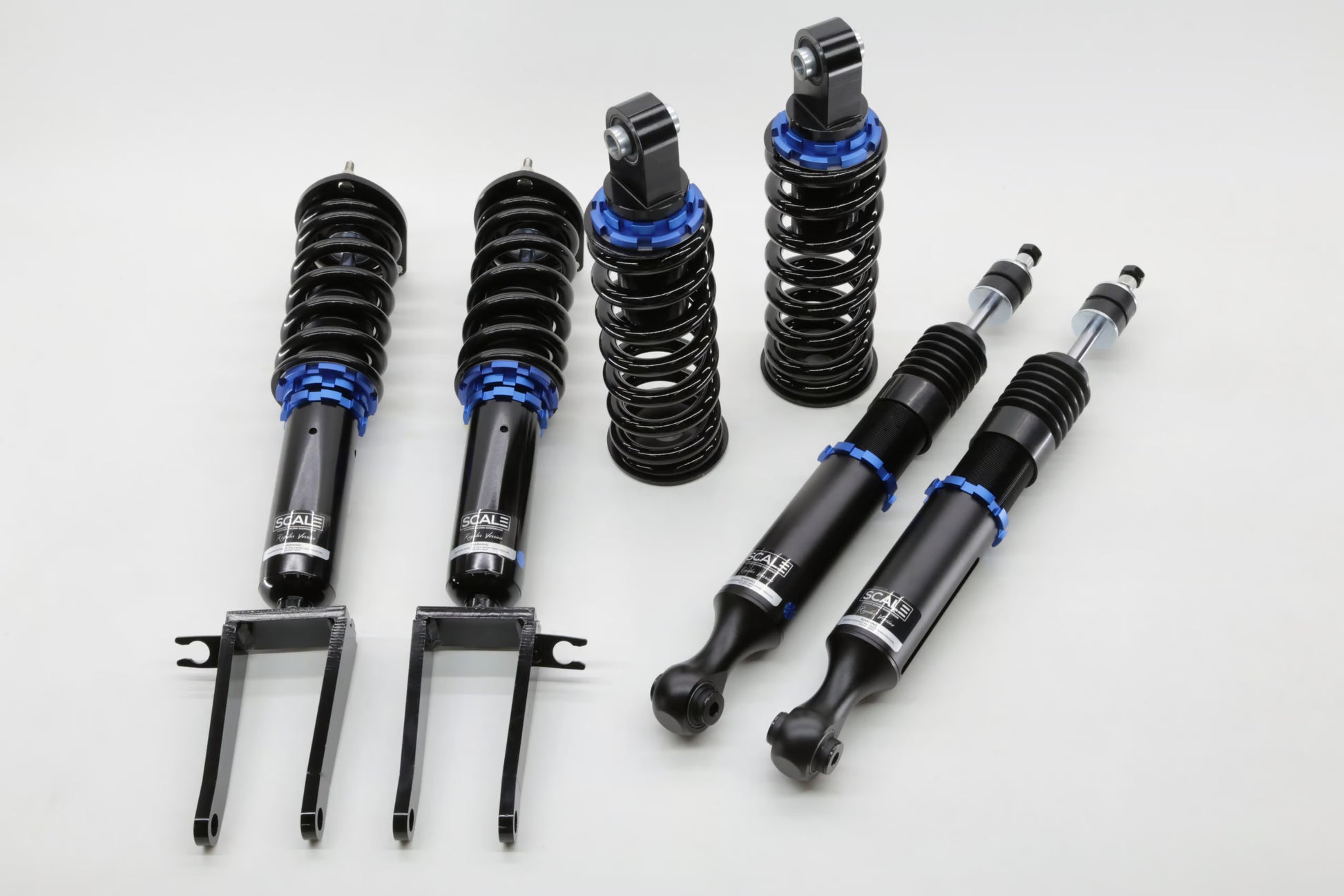

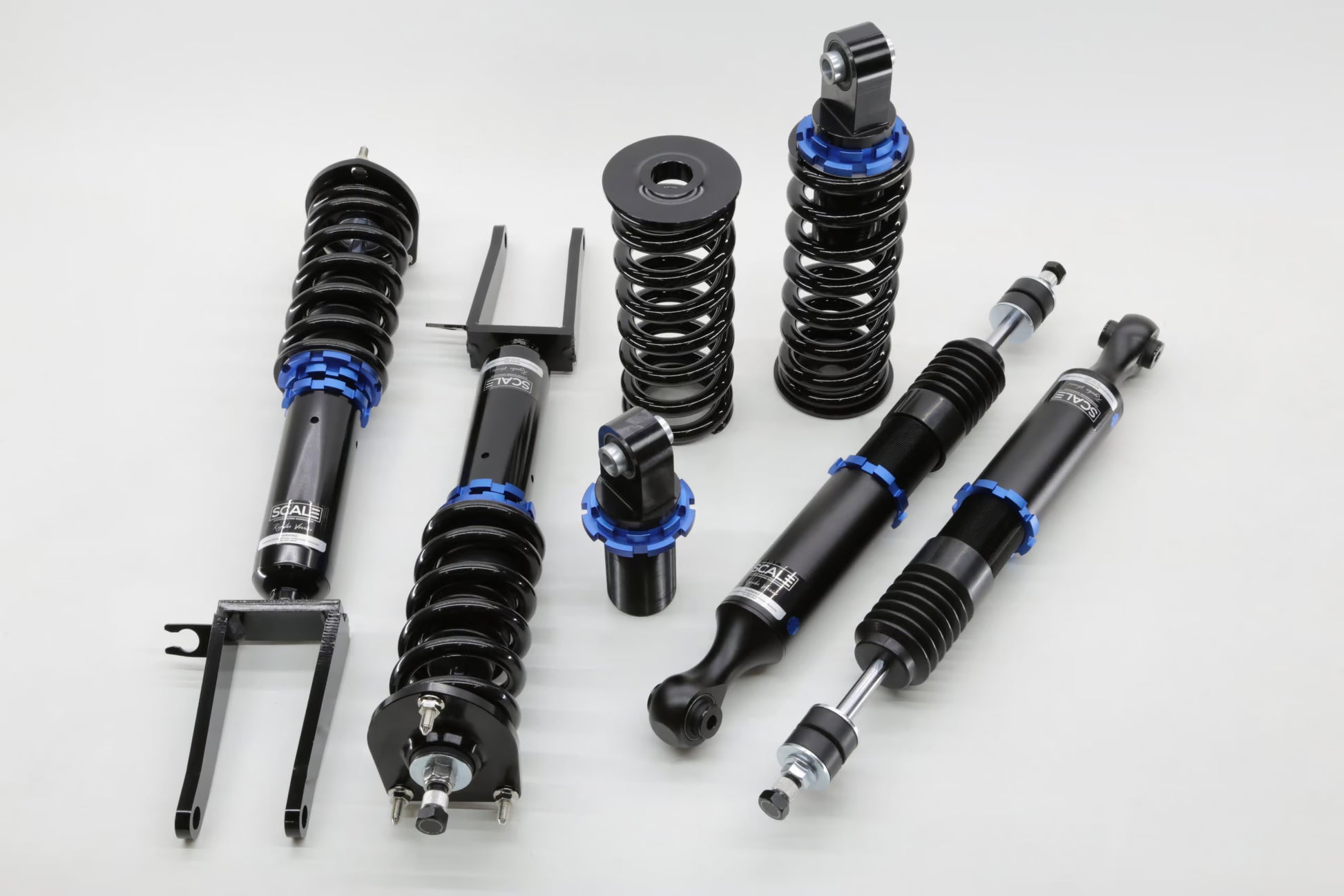

The SCALE MERCEDES-BENZ E-CLASS W211 AIRMATIC AWD 02-09 INNOVATIVE SERIES COILOVER is fully adjustable and customizable to fit each customer's needs.

This coilover suspension upgrade is designed to achieve a perfect balance of street comfort and increased performance. This suspension system allows you to easily adjust your ride height while improving handling performance of your car.

Our patented scaled system design allows easier and more precise adjustment and ensures equal height on each corner. Each shock is equipped with 24 levels of dampening adjustment to fine-tune the valving efficiency.

The Part : MB26-IS coilover shocks are handcrafted and assembled to your specs at SCALE facilities.

For cars equipped with factory airmatic (air ride) suspension.

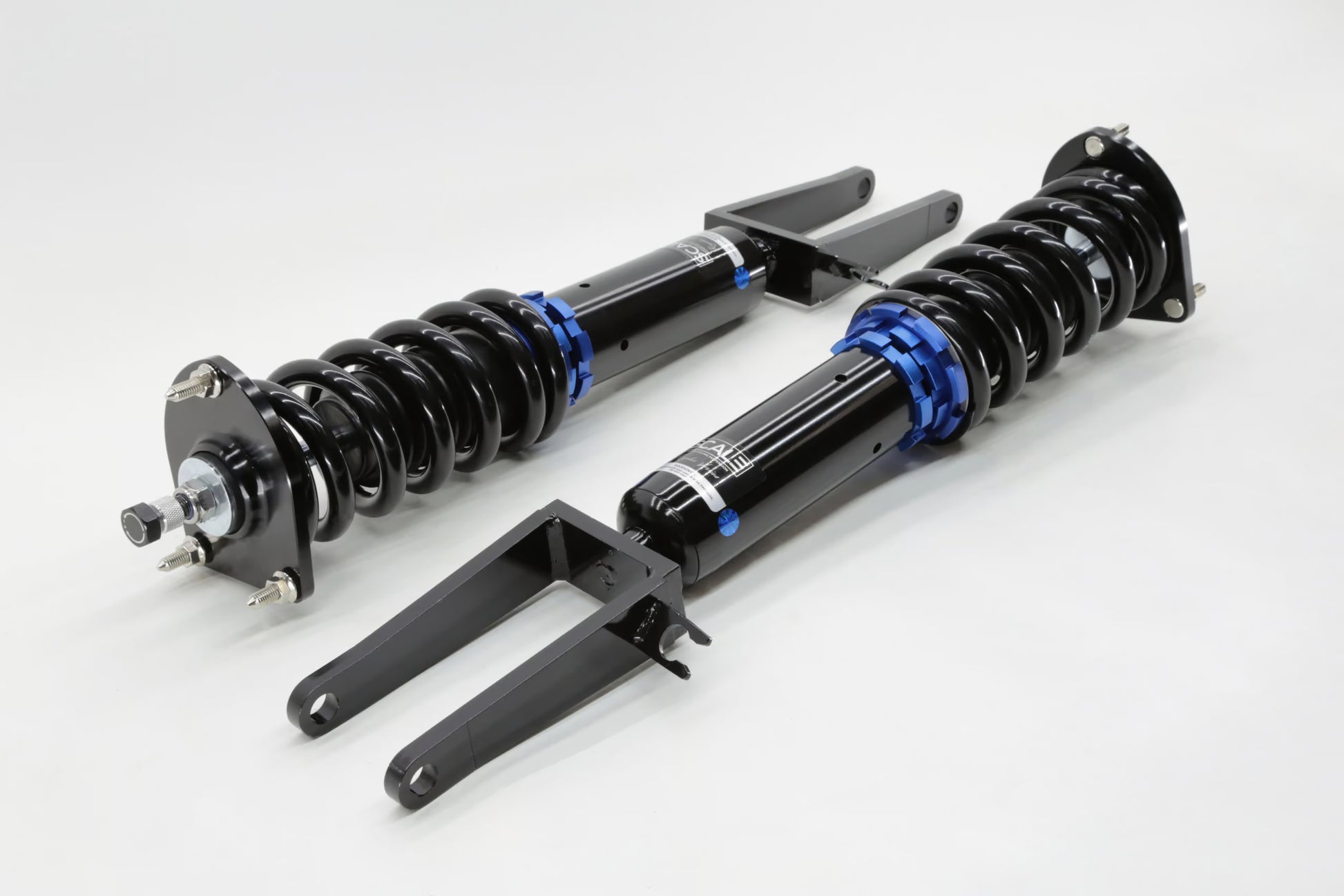

This double-wishbone front configuration does not allow the use of a camber plate, as the shock is not directly connected to the wheel. If additional camber adjustment is needed after lowering your car, some specialized company may offer adjustable control arm.

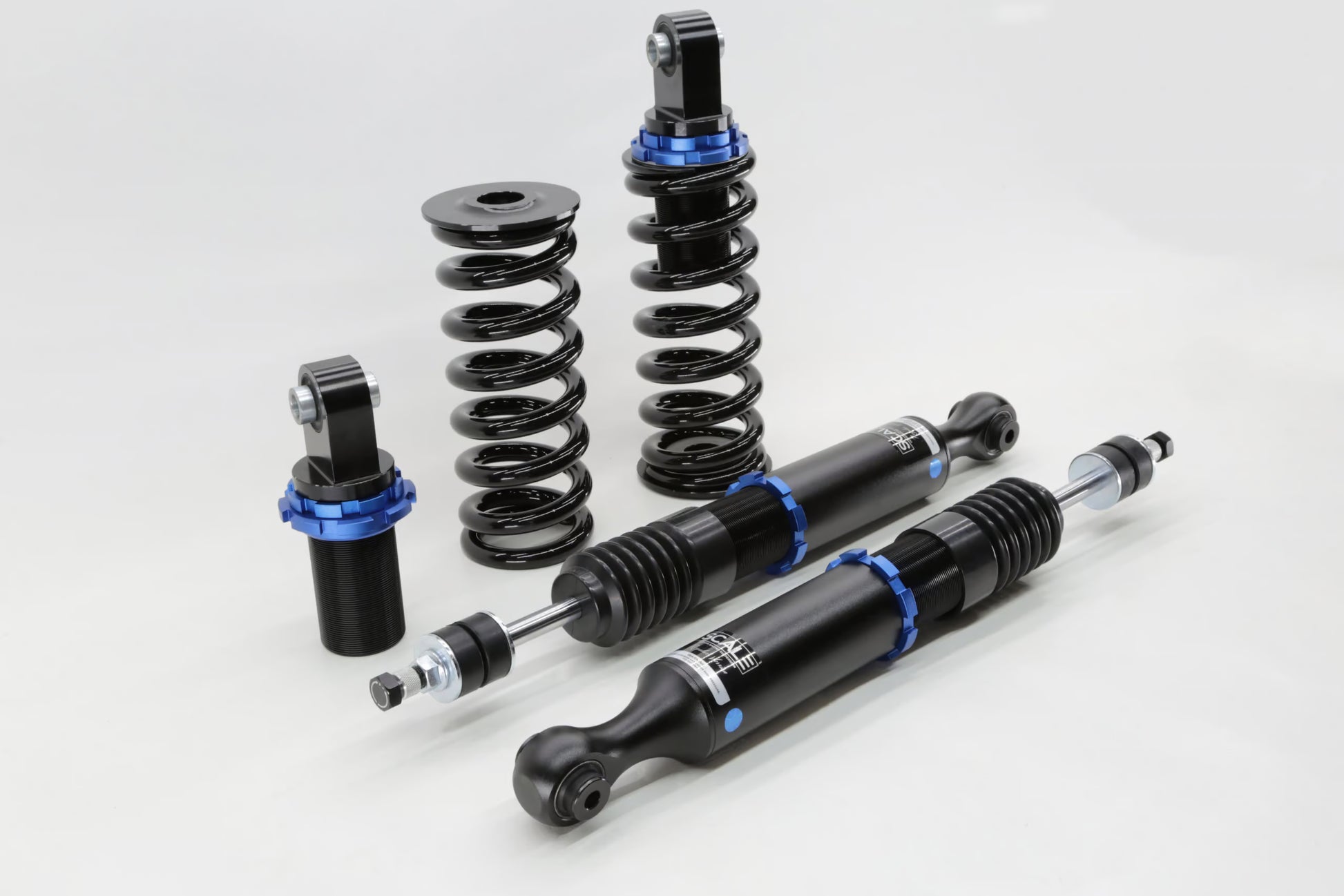

This rear divorced spring configuration uses a linear spring. Custom spring rate or length is not a problem.

Shock has no direct impact on wheel alignment, so if you need more adjustment than what your car offers from factory, you can check if a specialized company offers adjustable control arms.

Our mono-tube shock absorber are using high-quality CNC piston valves, synthetic oil and high-pressure nitrogen gas contained within one tube.

We can always customize the spring rate and shock length to fit your exact needs on this application.

Technical Specs

Make Mercedes-Benz
Model E-Class
Year 2002, 2003, 2004, 2005, 2006, 2007, 2008, and 2009
Front Suspension Double Wishbone
Rear Suspension Divorced Springs
Number of Valves 24
Aluminum Type 6061-T6 CNC-Forged
Body Diameter M52X1.5
Internal Design Monotube
Shock Oil Type Synthetic Shock Oil
Pressurized Charge High Pressure Nitrogen Gas
Assembly No Welding Required, Rebuildable
Mercedes-Benz E-Class W211 Airmatic AWD 02-09 Innovative Series Coilover

$1,295.00

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
Keith

Installed these on a 2007 E550 4matic, one of the only coilover kits that fit the vehicle & was able to confirm that with the help of the amazing customer service from the team that makes them. They are a very skilled bunch that take pride in their craftsmanship & trying to help you upgrade your vehicle. From the moment I called them, Josh helped me order what I needed & through out the whole process until the very end. I highly recommend SCALE suspension if you’re looking to upgrade your factory setup & support a small business that makes high quality low budget performance suspension. My car drives way better & is more sporty but still feels like a luxury ride. Feels like a cloud cruising, eats up any & every bump in the road & cuts up & grips the road in corners with no body role. It’s unbelievable how much better my car feels now I am very happy with the final result. Hats off to everyone at SCALE.

Thank you for taking the time to leave such a detailed and positive review! We are thrilled to hear that you are satisfied with the performance of our coilover kit on your Mercedes-Benz E-Class W211 Airmatic AWD. Our team takes great pride in our craftsmanship and customer service, and we are delighted to have been able to assist you throughout the process. We truly appreciate your support for our small business and are glad to hear that your vehicle now has a more luxurious and sporty ride. We hope you continue to enjoy your upgraded suspension and thank you for choosing SCALE.
