Audi A4 17+ (B9 ) * W/48.5Mm Front Strut Body* Innovative Series Coilover
Audi A4 17+ (B9 ) * W/48.5Mm Front Strut Body* Innovative Series Coilover
AU23-IS
🔴 Built To Order (1-3 Weeks)
Couldn't load pickup availability
Need help? Call us (480) 923-8389
This coilover suspension upgrade is designed to achieve a perfect balance of street comfort and increased performance. This suspension system allows you to easily adjust your ride height while improving handling performance of your car.
Our patented scaled system design allows easier and more precise adjustment and ensures equal height on each corner. Each shock is equipped with 24 levels of dampening adjustment to fine-tune the valving efficiency.

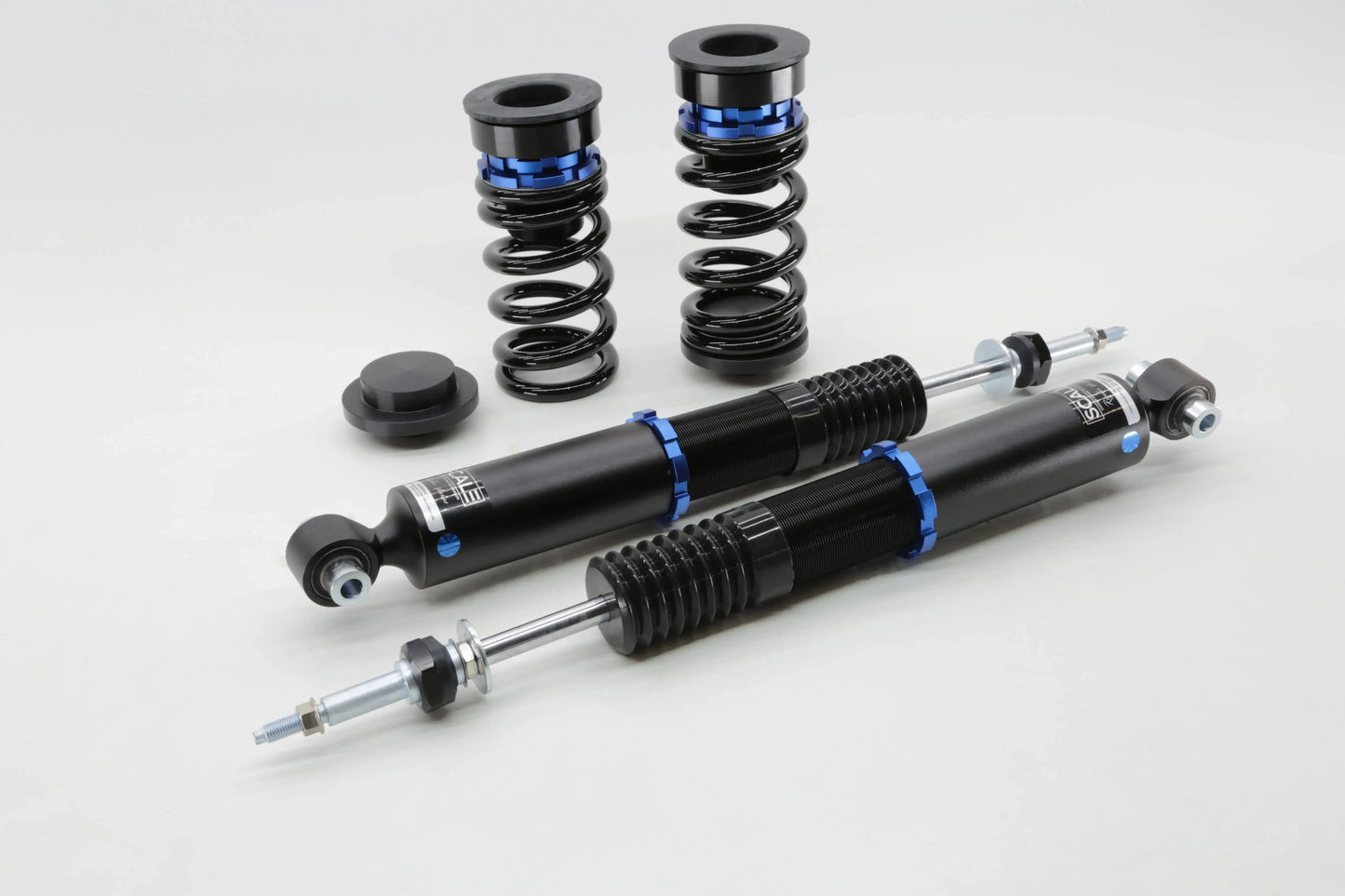

The Part : AU23-IS coilover shocks are handcrafted and assembled to your specs at SCALE facilities.
For models with build date from 11/07/16, with 48.5mm front strut body diameter
This double-wishbone front configuration does not allow the use of a camber plate, as the shock is not directly connected to the wheel. If additional camber adjustment is needed after lowering your car, some specialized company may offer adjustable control arm.
This rear divorced spring configuration uses a linear spring. Custom spring rate or length is not a problem.
Shock has no direct impact on wheel alignment, so if you need more adjustment than what your car offers from factory, you can check if a specialized company offers adjustable control arms.
Our mono-tube shock absorber are using high-quality CNC piston valves, synthetic oil and high-pressure nitrogen gas contained within one tube.
We can always customize the spring rate and shock length to fit your exact needs on this application.
Technical Specs
| Make | Audi |
|---|---|
| Model | A4 |
| Year | 2017, 2018, 2019, 2020, 2021, 2022, and 2023 |
| Front Suspension | Double Wishbone |
| Rear Suspension | Divorced Springs |
| Number of Valves | 24 |
| Aluminum Type | 6061-T6 CNC-Forged |
| Body Diameter | M52X1.5 |
| Internal Design | Monotube |
| Shock Oil Type | Synthetic Shock Oil |
| Pressurized Charge | High Pressure Nitrogen Gas |
| Assembly | No Welding Required, Rebuildable |
