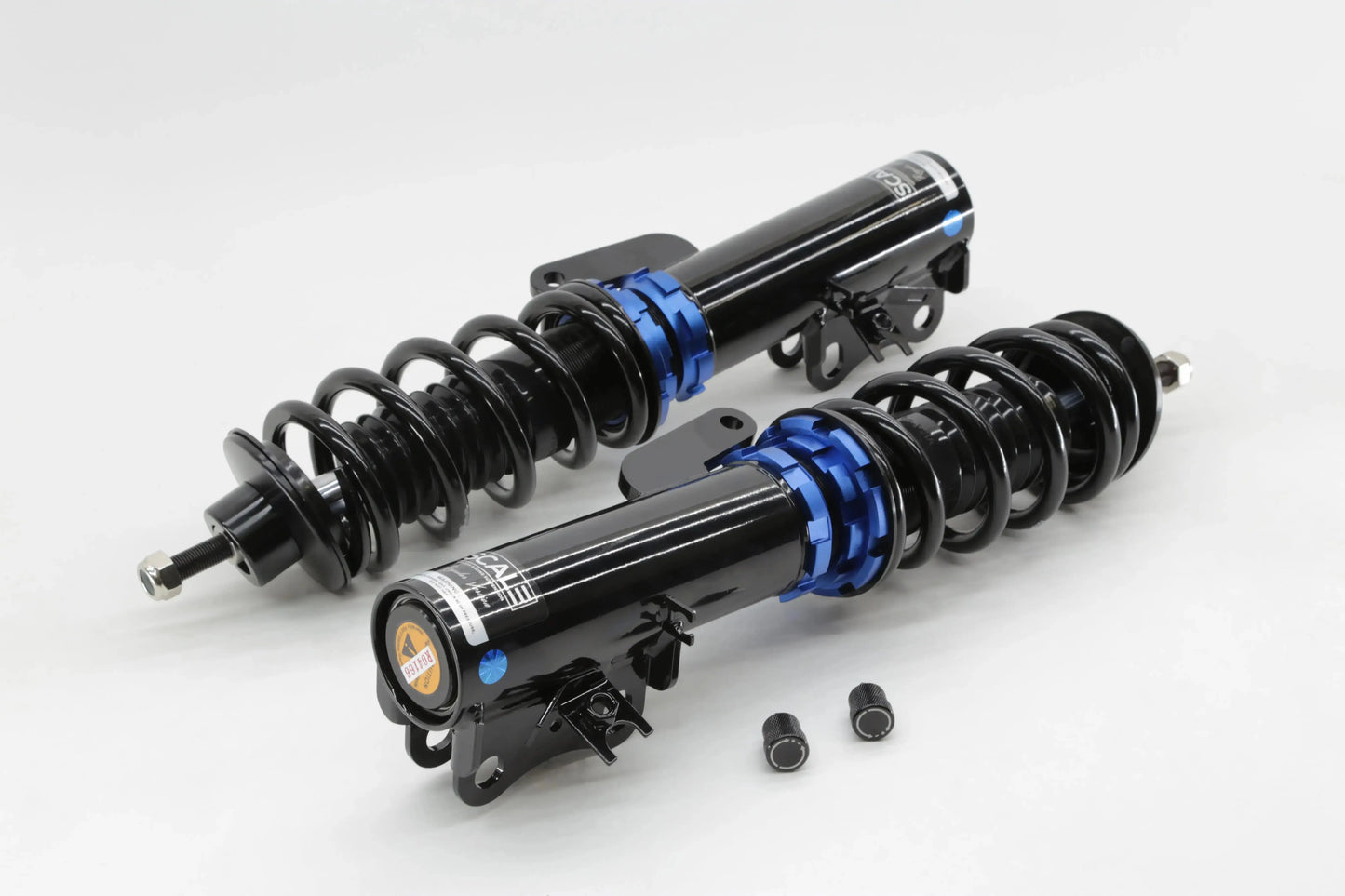

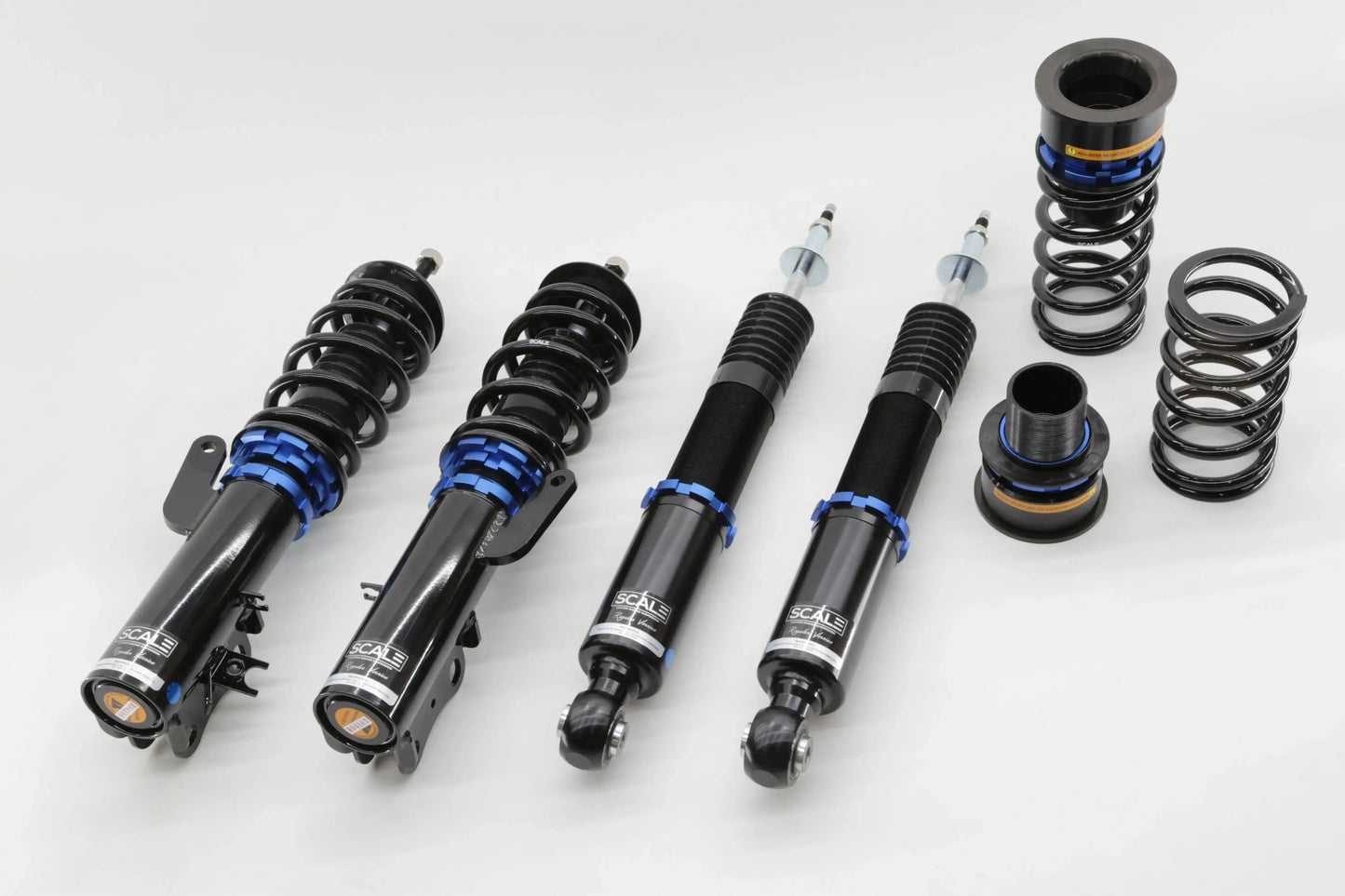

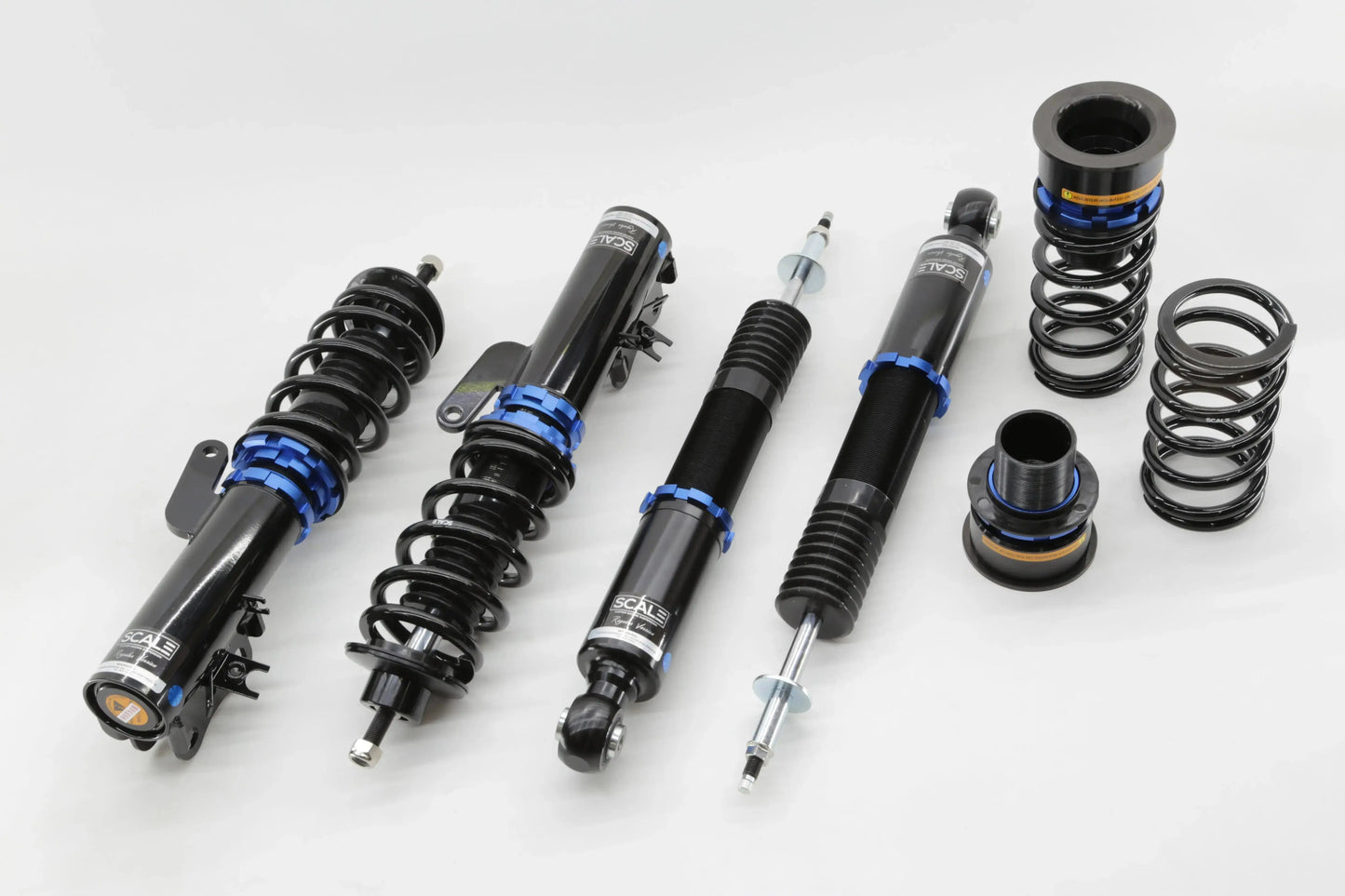

Honda Fit 14-20 Innovative Series Coilover
Honda Fit 14-20 Innovative Series Coilover
HD31-IS
🔴 Built To Order (2-4 Weeks)
Couldn't load pickup availability
Need help? Call us (480) 923-8389
This coilover suspension upgrade is designed to achieve a perfect balance of street comfort and increased performance. This suspension system allows you to easily adjust your ride height while improving handling performance of your car.
Our patented scaled system design allows easier and more precise adjustment and ensures equal height on each corner. Each shock is equipped with 24 levels of dampening adjustment to fine-tune the valving efficiency.
The Part : HD31-IS coilover shocks are handcrafted and assembled to your specs at SCALE facilities.
The MacPhearson configuration of this model uses factory top mount due to the shock tower design, so no camber plates can be used on this application. If you need extra camber adjustment, the lower mount holes give a decent amount of camber, and if more is required (for racing use), camber bolts can be added.

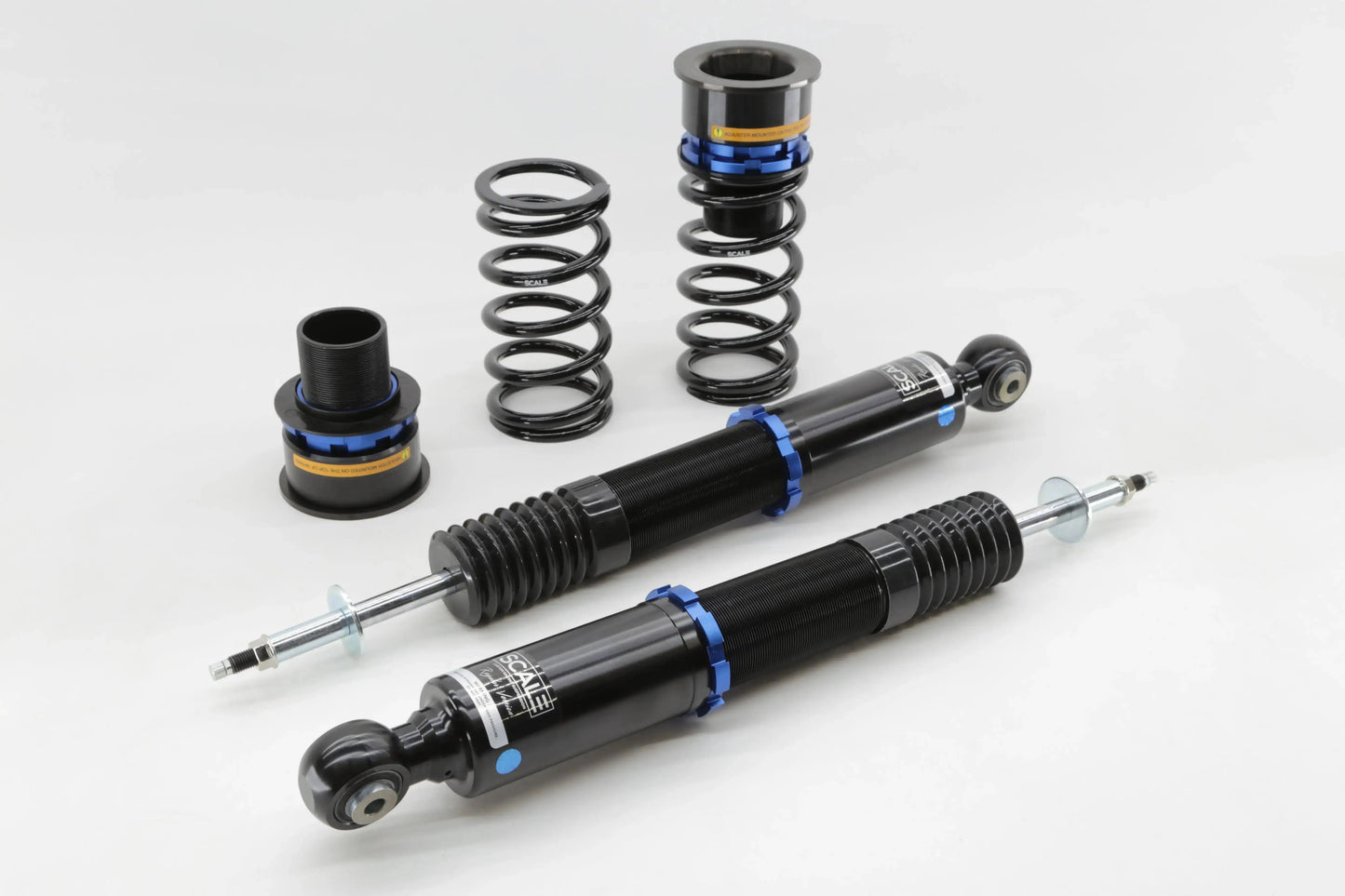

The Rear axle beam is not affected on the wheel alignment when lowering the car, so no extra camber will result after setting the vehicle to your desired ride height. Therefore, no adjustment part is needed with this configuration.
Our mono-tube shock absorber are using high-quality CNC piston valves, synthetic oil and high-pressure nitrogen gas contained within one tube.
We can always customize the spring rate and shock length to fit your exact needs on this application.
Technical Specs
| Make | Honda |
|---|---|
| Model | Fit |
| Year | 2014, 2015, 2016, 2017, 2018, 2019, and 2020 |
| Front Suspension | MacPherson |
| Rear Suspension | Axle Beam |
| Number of Valves | 24 |
| Aluminum Type | 6061-T6 CNC-Forged |
| Body Diameter | M52X1.5 |
| Internal Design | Monotube |
| Shock Oil Type | Synthetic Shock Oil |
| Pressurized Charge | High Pressure Nitrogen Gas |
| Assembly | No Welding Required, Rebuildable |
